السؤال
Transcribed Image Text:
1+6u(t) V
492
3u(t) V
+ I
Vx(t) +
ми
492
+
2H
v.(t):
125mF
i₁(t)
(a)

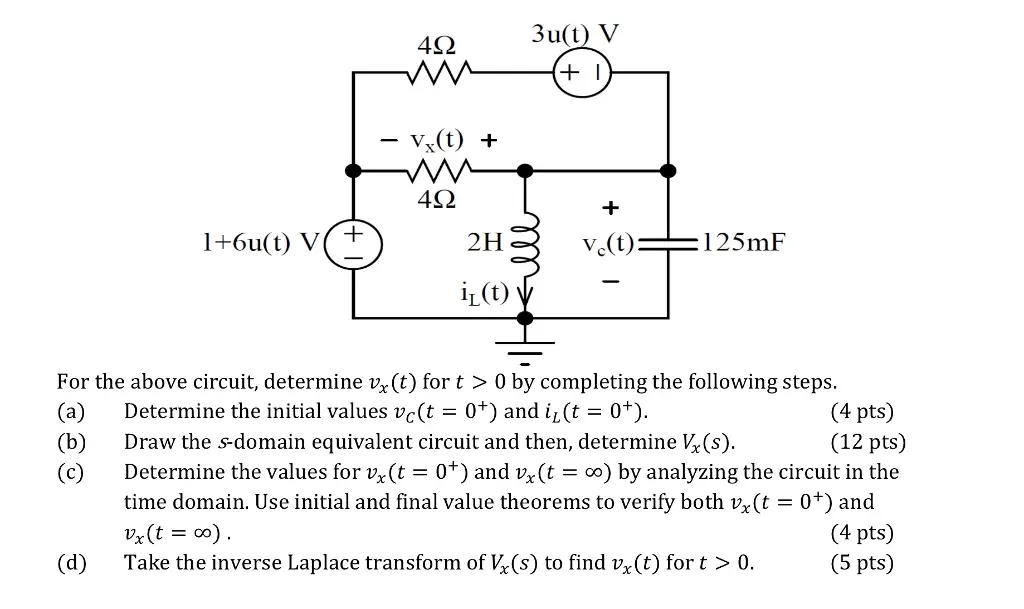

For the above circuit, determine vx(t) for t> 0 by completing the following steps.
Determine the initial values vc(t = 0+) and i₁(t = 0+).
(4 pts)
vx(t
Draw the s-domain equivalent circuit and then, determine Vx(s).
Determine the values for vx (t = 0+) and vx(t co) by analyzing the circuit in the
time domain. Use initial and final value theorems to verify both vx(t = 0+) and
= ∞).
(12 pts)
(4 pts)
(d) Take the inverse Laplace transform of Vx(s) to find vx(t) for t > 0.
(5 pts)
check_circle الجواب — حل مفصل خطوة بخطوة
