السؤال

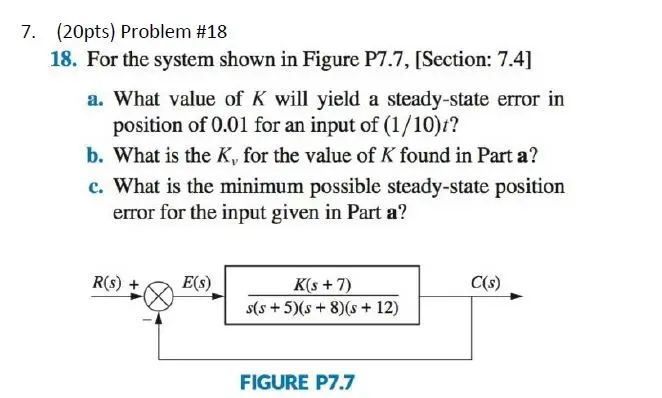

Transcribed Image Text:
7. (20pts) Problem #18
18. For the system shown in Figure P7.7, [Section: 7.4]
a. What value of K will yield a steady-state error in
position of 0.01 for an input of (1/10)t?
b. What is the K, for the value of K found in Part a?
c. What is the minimum possible steady-state position
error for the input given in Part a?
R(s)
E(s)
K(s +7)
s(s+5)(s+8)(s+12)
FIGURE P7.7
C(s)
