السؤال

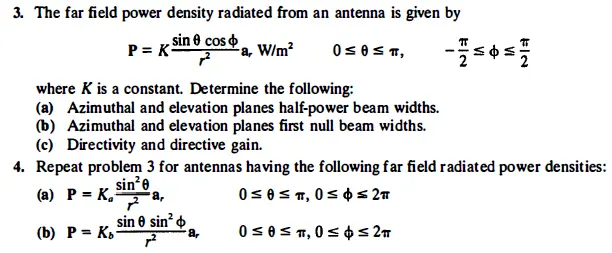

Transcribed Image Text:
3. The far field power density radiated from an antenna is given by
sin cos
P= K
a, W/m²
0 ≤ 0 ≤ π,
-
VI
12
where K is a constant. Determine the following:
(a) Azimuthal and elevation planes half-power beam widths.
(b) Azimuthal and elevation planes first null beam widths.
(c) Directivity and directive gain.
4. Repeat problem 3 for antennas having the following far field radiated power densities:
(a) P K
sin20
0≤0, 0 ≤≤2
sin 0 sin²
(b) P K
0 ≤ 0 ≤ π, 0 ≤ ≤2T
