السؤال
Transcribed Image Text:
600 N
0.2 m
45°/
2 m
3 m
100 N
2 m
200 N

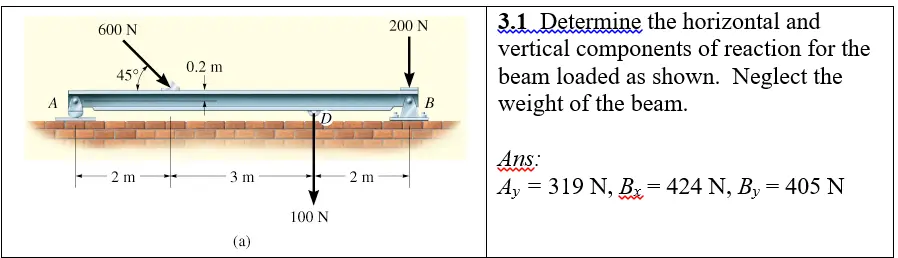

3.1 Determine the horizontal and
vertical components of reaction for the
beam loaded as shown. Neglect the
weight of the beam.
Ans:
=
==
Ay 319 N, Bx = 424 N, By = 405 N
(a)
