السؤال
Transcribed Image Text:

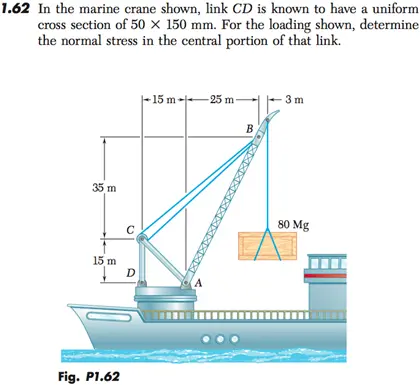

1.62 In the marine crane shown, link CD is known to have a uniform.
cross section of 50 X 150 mm. For the loading shown, determine
the normal stress in the central portion of that link.
35 m
15 m25 m
- 3 m
B
C
80 Mg
15 m
D
Fig. P1.62
