السؤال

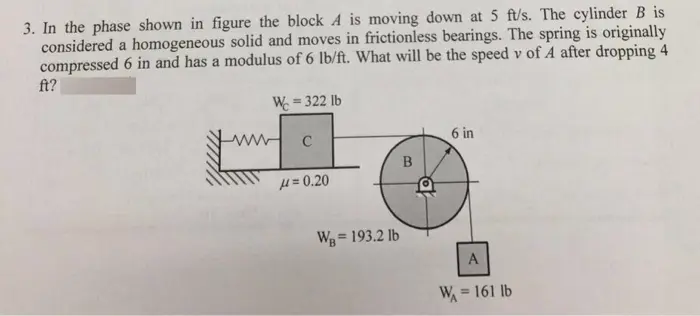

Transcribed Image Text:
3. In the phase shown in figure the block A is moving down at 5 ft/s. The cylinder B is
considered a homogeneous solid and moves in frictionless bearings. The spring is originally
compressed 6 in and has a modulus of 6 lb/ft. What will be the speed v of A after dropping 4
ft?
=322 lb
Wc=
C
6 in
B
μ=0.20
WB=193.2 lb
A
W₁ = 161 lb
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
