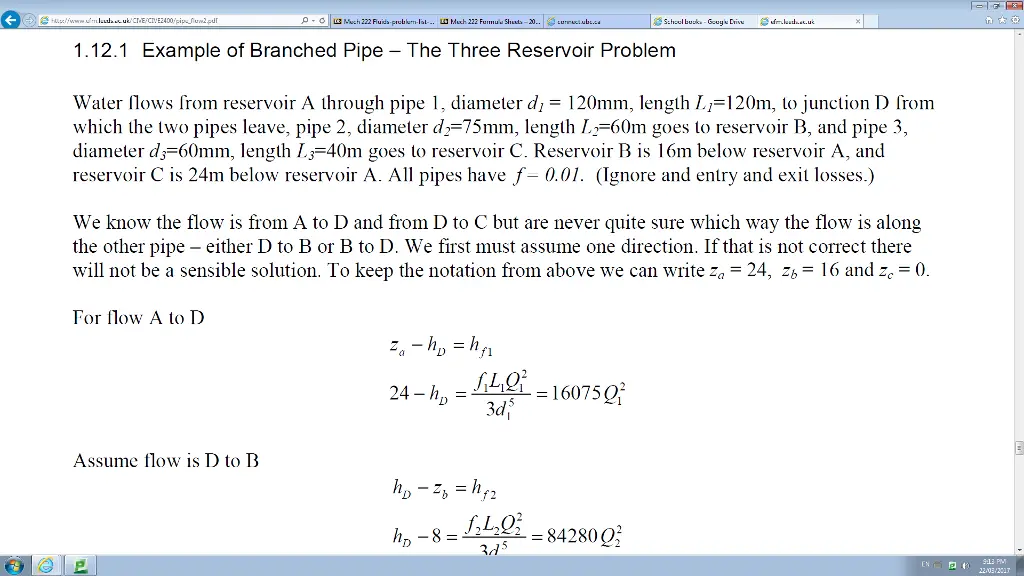

//www.m.uk/CIVE/CIVE2400/pipulow2.pd P-Much 222 Fluida-problem-la-Much 222 Formula Sheads-20..cbc.c School books-Google Drive fl.us 1.12.1 Example of Branched Pipe - The Three Reservoir Problem Water flows from reservoir A through pipe 1, diameter d₁ = 120mm, length L₁=120m, to junction D from which the two pipes leave, pipe 2, diameter d=75mm, length L=60m goes to reservoir B, and pipe 3, diameter d3=60mm, length L3=40m goes to reservoir C. Reservoir B is 16m below reservoir A, and reservoir C is 24m below reservoir A. All pipes have f= 0.01. (Ignore and entry and exit losses.) We know the flow is from A to D and from D to C but are never quite sure which way the flow is along the other pipe either D to B or B to D. We first must assume one direction. If that is not correct there will not be a sensible solution. To keep the notation from above we can write za = 24, 26 = 16 and z = 0. For flow A to D za - h₁ = h₤1 24-h₂ = 14Q 3d =16075Q Assume flow is D to B h₁ - z₁ = h +2 h₂-8= 1LQ 3d5 077 nto =84280 Q EN 9:13 PM 22/03/2017
