السؤال
Transcribed Image Text:

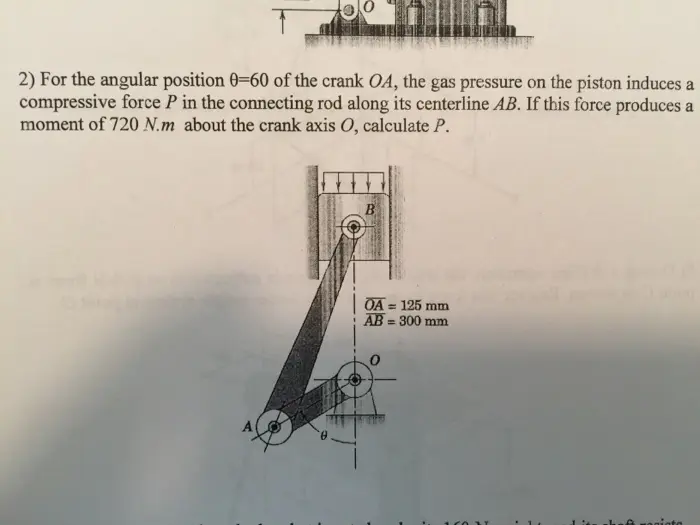

2) For the angular position 0-60 of the crank OA, the gas pressure on the piston induces a
compressive force P in the connecting rod along its centerline AB. If this force produces a
moment of 720 N.m about the crank axis O, calculate P.
A
OA = 125 mm
AB=300 mm
Amaginta
