السؤال

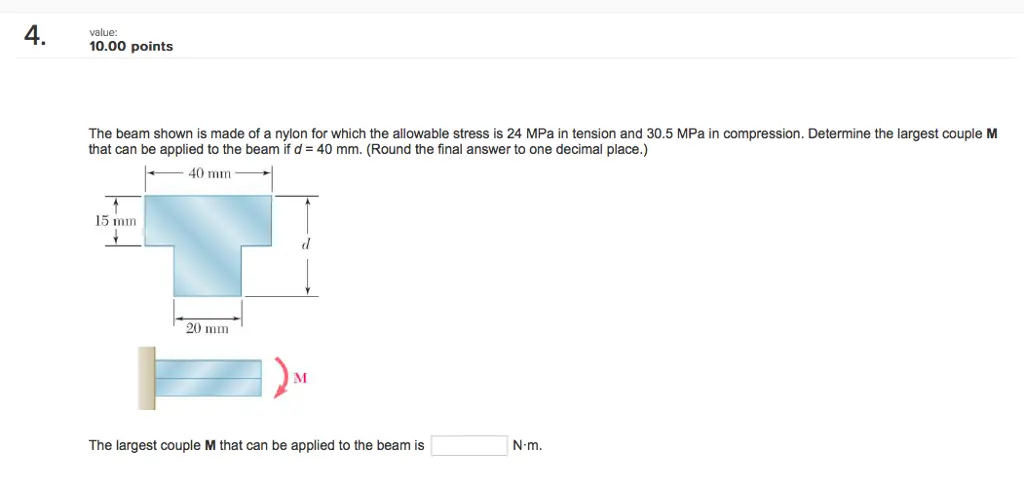

Transcribed Image Text:
4.
value:
10.00 points
The beam shown is made of a nylon for which the allowable stress is 24 MPa in tension and 30.5 MPa in compression. Determine the largest couple M
that can be applied to the beam if d = 40 mm. (Round the final answer to one decimal place.)
40 mm -
15 mm
20 mm
M
The largest couple M that can be applied to the beam is
N-m.
