السؤال
Transcribed Image Text:

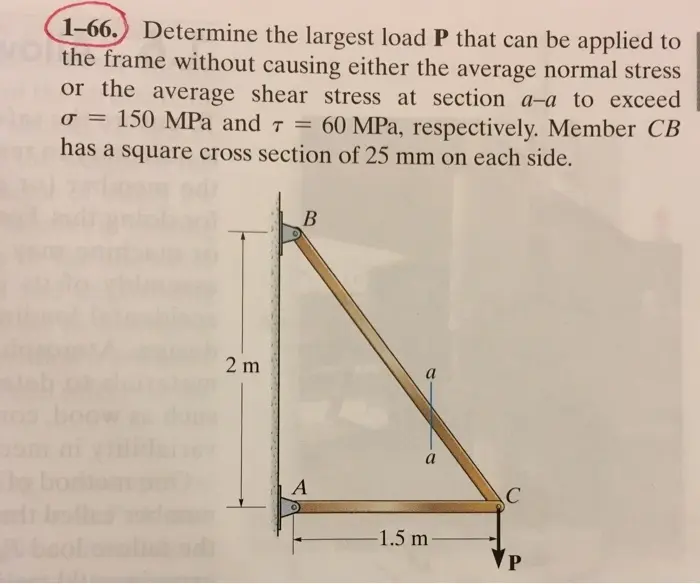

1-66. Determine the largest load P that can be applied to
the frame without causing either the average normal stress
or the average shear stress at section a-a to exceed
σ = 150 MPa and 7 = 60 MPa, respectively. Member CB
has a square cross section of 25 mm on each side.
€
B
dq
109.boow
om ni vtilida
bo bortom po
sdt bolled
Absololit
2 m
a
A
a
-1.5 m-
C
P
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
