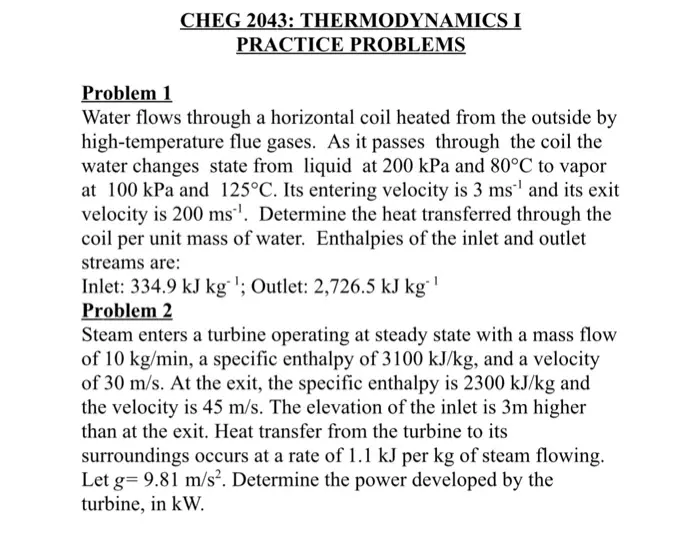

CHEG 2043: THERMODYNAMICS I PRACTICE PROBLEMS Problem 1 Water flows through a horizontal coil heated from the outside by high-temperature flue gases. As it passes through the coil the water changes state from liquid at 200 kPa and 80°C to vapor at 100 kPa and 125°C. Its entering velocity is 3 ms and its exit velocity is 200 ms. Determine the heat transferred through the coil per unit mass of water. Enthalpies of the inlet and outlet streams are: Inlet: 334.9 kJ kg 1; Outlet: 2,726.5 kJ kg Problem 2 Steam enters a turbine operating at steady state with a mass flow of 10 kg/min, a specific enthalpy of 3100 kJ/kg, and a velocity of 30 m/s. At the exit, the specific enthalpy is 2300 kJ/kg and the velocity is 45 m/s. The elevation of the inlet is 3m higher than at the exit. Heat transfer from the turbine to its surroundings occurs at a rate of 1.1 kJ per kg of steam flowing. Let g= 9.81 m/s². Determine the power developed by the turbine, in kW.
