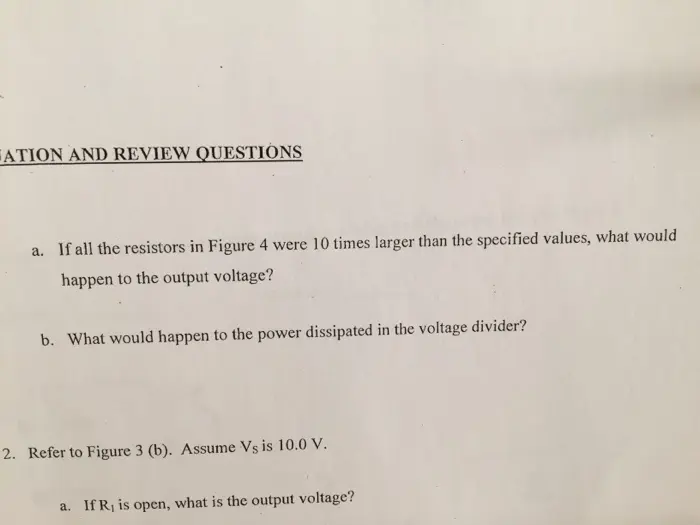

ATION AND REVIEW QUESTIONS a. If all the resistors in Figure 4 were 10 times larger than the specified values, what would happen to the output voltage? b. What would happen to the power dissipated in the voltage divider? 2. Refer to Figure 3 (b). Assume Vs is 10.0 V. a. If R, is open, what is the output voltage? X y using a potentiometer. The full Figure 3(a). If one desires to limit es as illustrated in Figure 3(b). Vs 10 V R13302 3.3K R2 470 4.7k 223 R3 ww 680 Ω 6.8K R41K 10K Figure 4 Page 34
