السؤال
Transcribed Image Text:

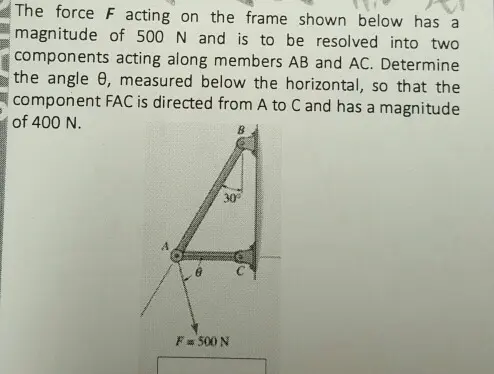

The force F acting on the frame shown below has a
magnitude of 500 N and is to be resolved into two
components acting along members AB and AC. Determine
the angle 0, measured below the horizontal, so that the
component FAC is directed from A to C and has a magnitude
of 400 N.
B
A
30°
F= 500 N
