السؤال
Transcribed Image Text:

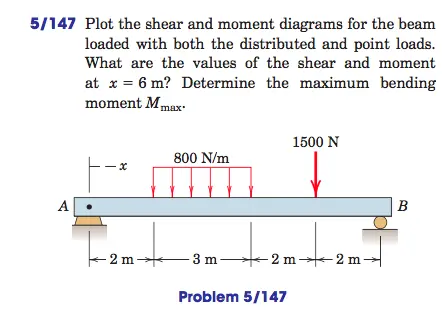

5/147 Plot the shear and moment diagrams for the beam
loaded with both the distributed and point loads.
What are the values of the shear and moment
at x 6 m? Determine the maximum bending
moment Mmax
A
1500 N
800 N/m
x
-2 m-
3 m
2 m2 m
Problem 5/147
