السؤال
Transcribed Image Text:

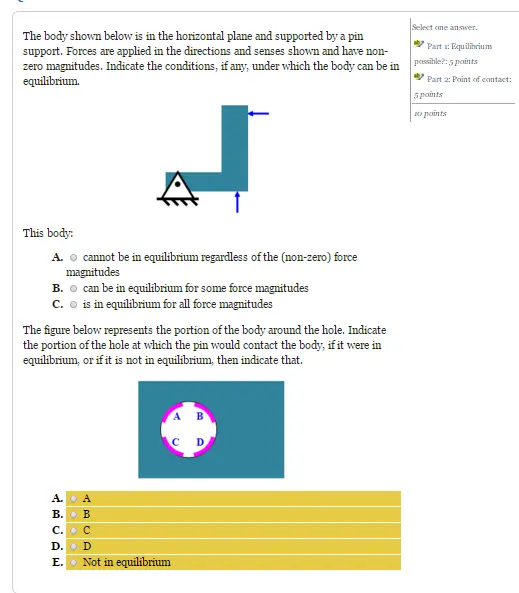

The body shown below is in the horizontal plane and supported by a pin
support. Forces are applied in the directions and senses shown and have non-
zero magnitudes. Indicate the conditions, if any, under which the body can be in
equilibrium.
Select one answer.
Part 1: Equilibrium
possible?: 5 points
Part 2: Point of contact:
A
This body:
A. . cannot be in equilibrium regardless of the (non-zero) force
magnitudes
B. can be in equilibrium for some force magnitudes
C.
is in equilibrium for all force magnitudes
The figure below represents the portion of the body around the hole. Indicate
the portion of the hole at which the pin would contact the body, if it were in
equilibrium, or if it is not in equilibrium, then indicate that.
A. A
B.
B
C.
C
D.
D
E.
Not in equilibrium
5 points
10 points
