السؤال
Transcribed Image Text:

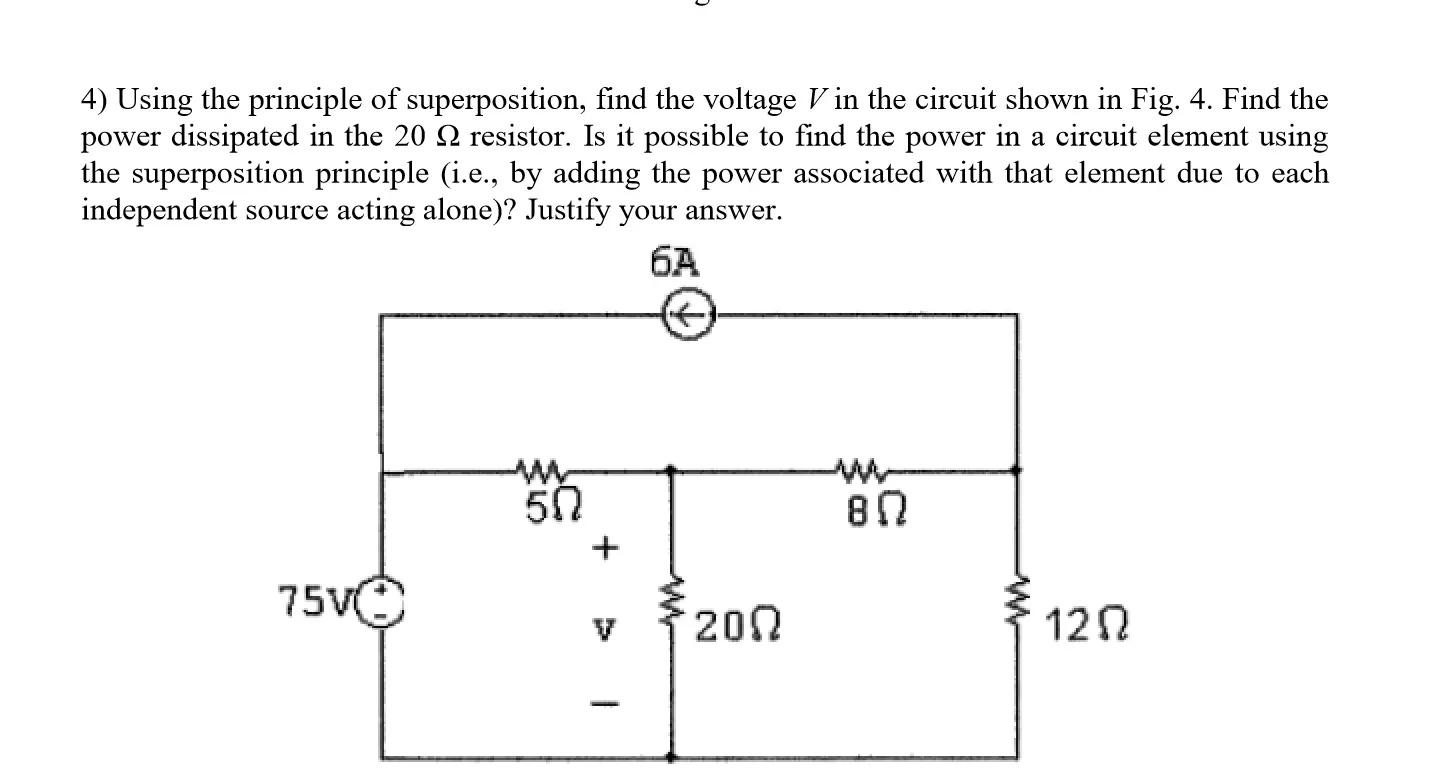

4) Using the principle of superposition, find the voltage V in the circuit shown in Fig. 4. Find the
power dissipated in the 20 2 resistor. Is it possible to find the power in a circuit element using
the superposition principle (i.e., by adding the power associated with that element due to each
independent source acting alone)? Justify your answer.
6A
75VO
ww
50
ww
ΘΩ
+
V
200
120
