السؤال
Transcribed Image Text:

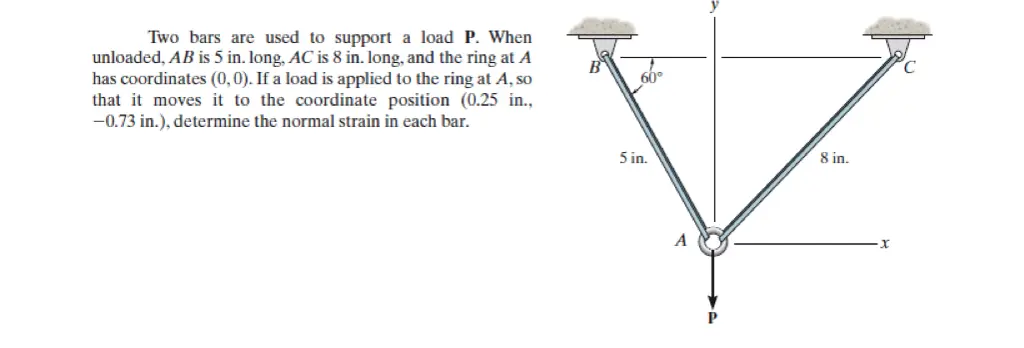

Two bars are used to support a load P. When
unloaded, AB is 5 in. long, AC is 8 in. long, and the ring at A
has coordinates (0,0). If a load is applied to the ring at A, so
that it moves it to the coordinate position (0.25 in.,
-0.73 in.), determine the normal strain in each bar.
60°
5 in.
8 in.
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
