السؤال
Transcribed Image Text:

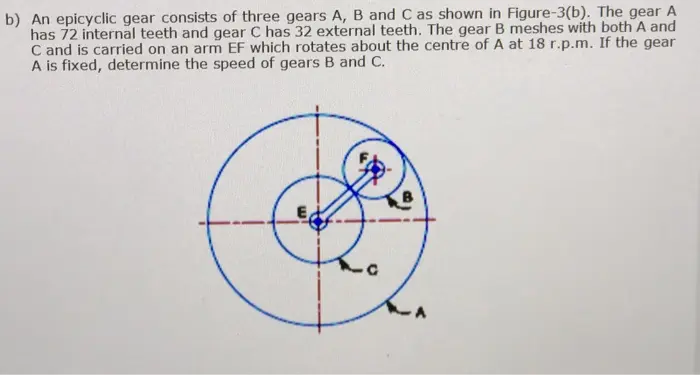

b) An epicyclic gear consists of three gears A, B and C as shown in Figure-3(b). The gear A
has 72 internal teeth and gear C has 32 external teeth. The gear B meshes with both A and
C and is carried on an arm EF which rotates about the centre of A at 18 r.p.m. If the gear
A is fixed, determine the speed of gears B and C.
