السؤال
Transcribed Image Text:

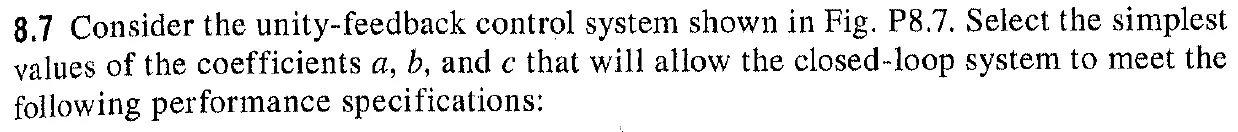

8.7 Consider the unity-feedback control system shown in Fig. P8.7. Select the simplest
values of the coefficients a, b, and c that will allow the closed-loop system to meet the
following performance specifications:
c. No more than 10% overshoot due to a step input.
R
+
a
bs
+
이미
+
Fig. P8.7
1
s(s + 1)
C
