السؤال

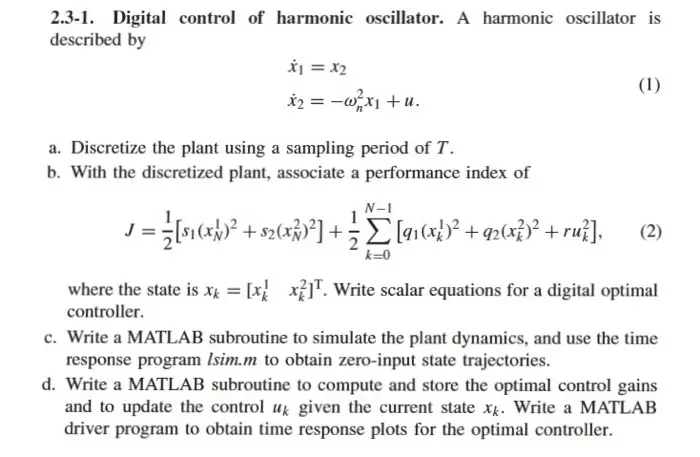

Transcribed Image Text:
2.3-1. Digital control of harmonic oscillator. A harmonic oscillator is
described by
x₁ = x2
x2=-wx+u.
(1)
a. Discretize the plant using a sampling period of T.
b. With the discretized plant, associate a performance index of
1
N-1
1 = {[51 (xx)² + $2 (x²)²] + ½ Σ [91(x)²+92(x)²+ruz],
2
k=0
(2)
where the state is x = [xx]. Write scalar equations for a digital optimal
controller.
c. Write a MATLAB subroutine to simulate the plant dynamics, and use the time
response program Isim.m to obtain zero-input state trajectories.
d. Write a MATLAB subroutine to compute and store the optimal control gains
and to update the control uk given the current state xk. Write a MATLAB
driver program to obtain time response plots for the optimal controller.
