السؤال
Transcribed Image Text:

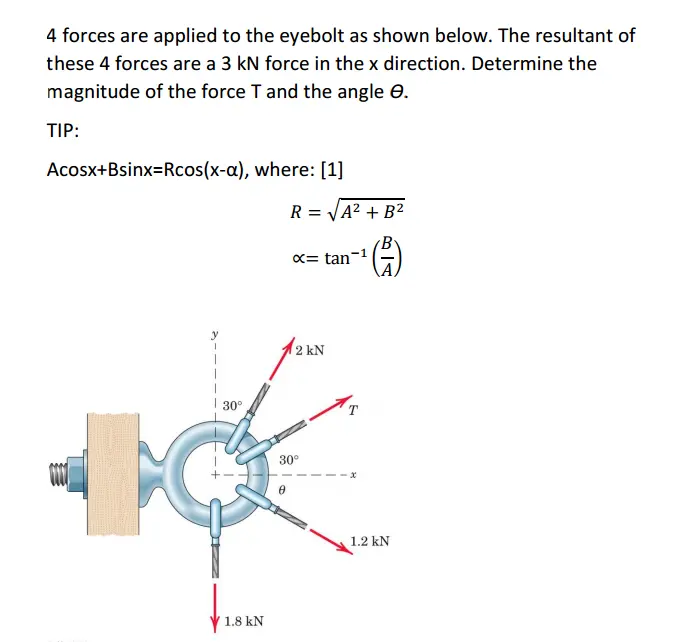

4 forces are applied to the eyebolt as shown below. The resultant of
these 4 forces are a 3 kN force in the x direction. Determine the
magnitude of the force T and the angle e.
TIP:
Acosx+Bsinx=Rcos(x-a), where: [1]
30°
1.8 kN
30°
R = √√A² + B²
x= tan
2 kN
T
1.2 kN
