السؤال

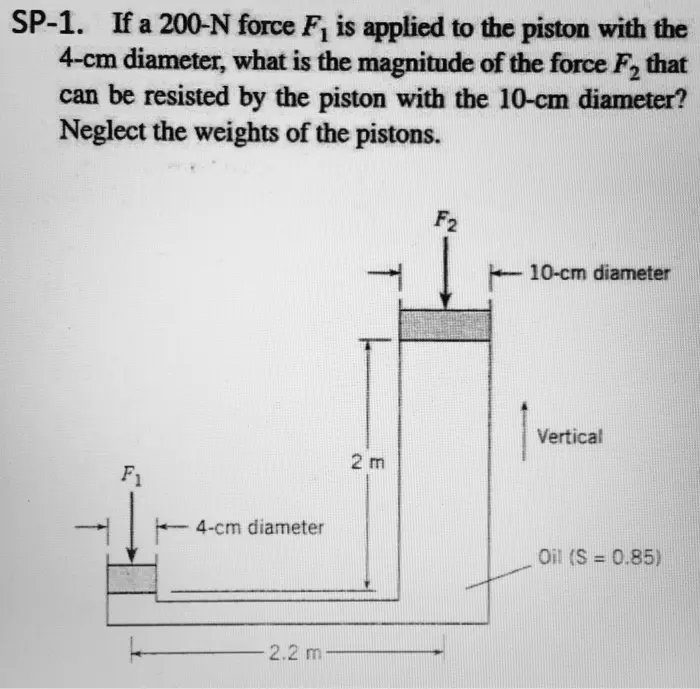

Transcribed Image Text:
SP-1. If a 200-N force F₁ is applied to the piston with the
4-cm diameter, what is the magnitude of the force F₂ that
can be resisted by the piston with the 10-cm diameter?
Neglect the weights of the pistons.
F2
F1
4-cm diameter
2.2 m
T
1
10-cm diameter
Vertical
2 m
Oil (S= 0.85)
