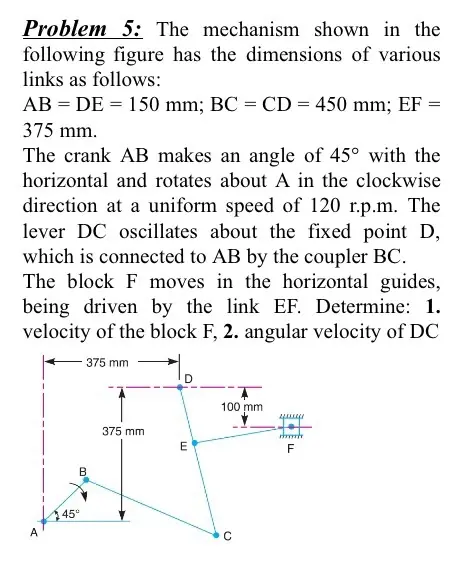

Problem 5: The mechanism shown in the following figure has the dimensions of various links as follows: AB =DE = 150 mm; BC = CD = 450 mm; EF = 375 mm. The crank AB makes an angle of 45° with the horizontal and rotates about A in the clockwise direction at a uniform speed of 120 r.p.m. The lever DC oscillates about the fixed point D, which is connected to AB by the coupler BC. The block F moves in the horizontal guides, being driven by the link EF. Determine: 1. velocity of the block F, 2. angular velocity of DC 375 mm 45° B 375 mm E 100 mm F
