السؤال

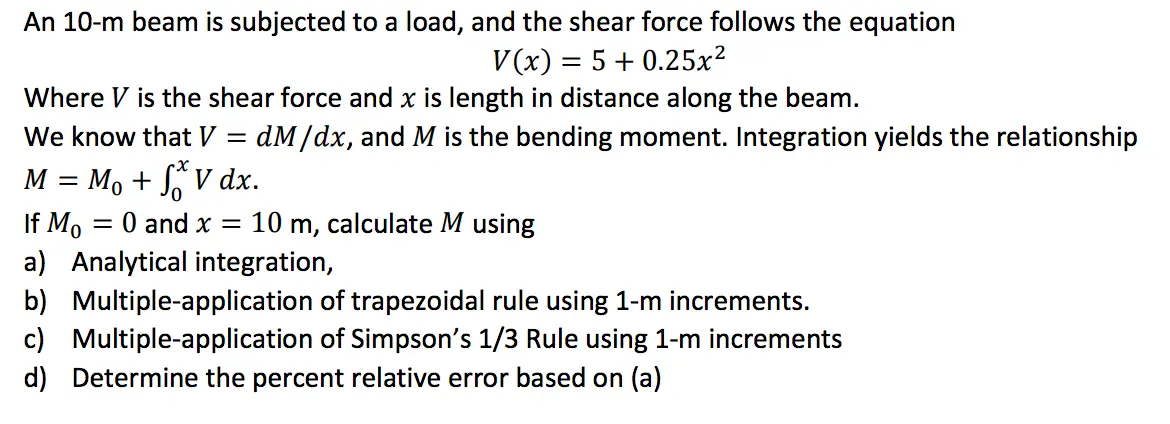

Transcribed Image Text:
An 10-m beam is subjected to a load, and the shear force follows the equation
V(x)=5+0.25x²
Where V is the shear force and x is length in distance along the beam.
We know that V = dM/dx, and M is the bending moment. Integration yields the relationship
M = Mo+ √ V dx.
If Mo = 0 and x = 10 m, calculate M using
a) Analytical integration,
b) Multiple-application of trapezoidal rule using 1-m increments.
c) Multiple-application of Simpson's 1/3 Rule using 1-m increments
d) Determine the percent relative error based on (a)
