السؤال

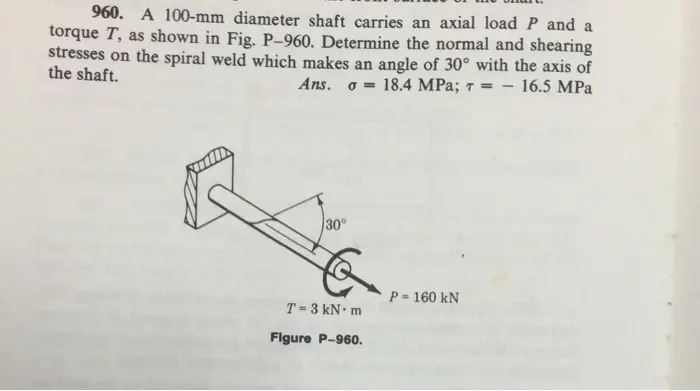

Transcribed Image Text:
960. A 100-mm diameter shaft carries an axial load P and a
torque T, as shown in Fig. P-960. Determine the normal and shearing
stresses on the spiral weld which makes an angle of 30° with the axis of
the shaft.
Ans.
18.4 MPa; r =
- 16.5 MPa
-
30°
T=3kN-m
Figure P-960.
P = 160 kN
