السؤال
Transcribed Image Text:

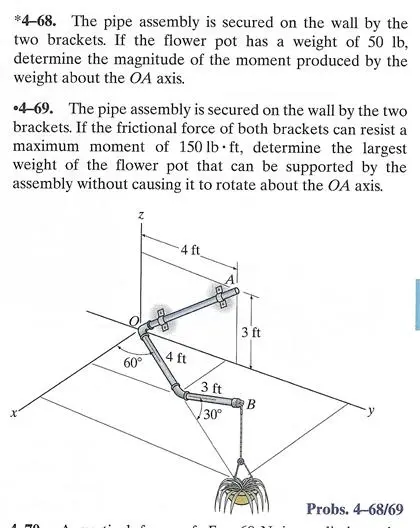

*4-68. The pipe assembly is secured on the wall by the
two brackets. If the flower pot has a weight of 50 lb,
determine the magnitude of the moment produced by the
weight about the OA axis.
4-69. The pipe assembly is secured on the wall by the two
brackets. If the frictional force of both brackets can resist a
maximum moment of 150 lb ft, determine the largest
weight of the flower pot that can be supported by the
assembly without causing it to rotate about the OA axis.
x
4 ft
3 ft
60°
4 ft
3 ft
B
30°
Probs. 4-68/69
