السؤال

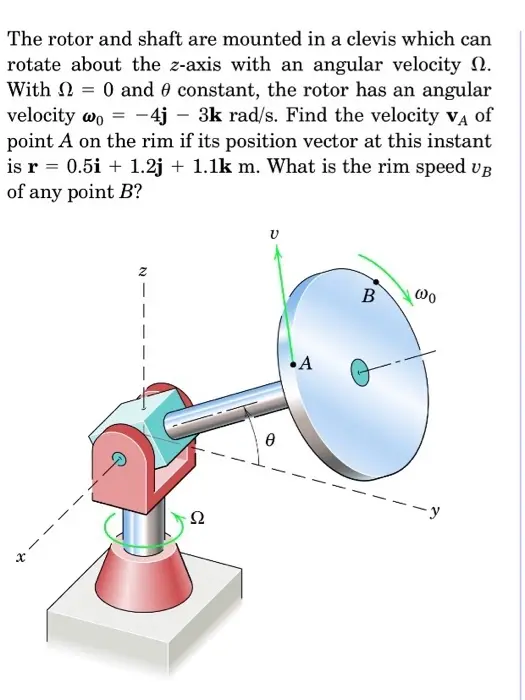

Transcribed Image Text:
The rotor and shaft are mounted in a clevis which can
rotate about the z-axis with an angular velocity .
With 2 = 0 and constant, the rotor has an angular
velocity wo = -4j - 3k rad/s. Find the velocity VA of
point A on the rim if its position vector at this instant
is r = 0.5i + 1.2j + 1.1k m. What is the rim speed VB
of any point B?
x
Ω
V
Ꮎ
A
B
y
