السؤال
Transcribed Image Text:

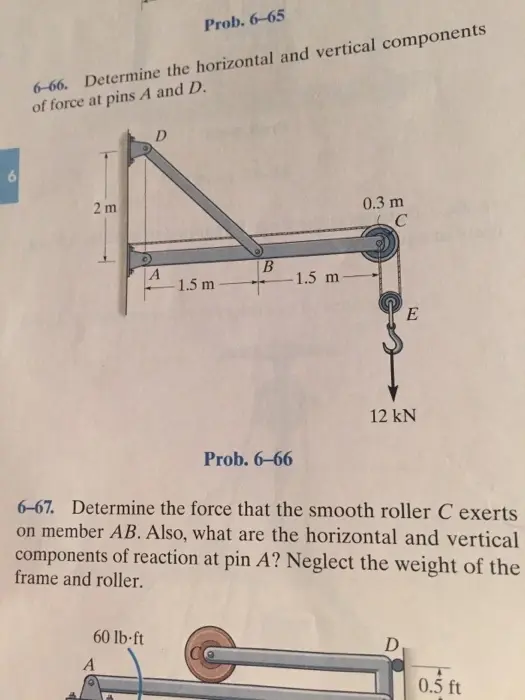

Prob. 6-65
6-66. Determine the horizontal and vertical components
of force at pins A and D.
D
6
2 m
0.3 m
C
B
A
1.5 m
1.5 m
E
12 kN
Prob. 6-66
6-67. Determine the force that the smooth roller C exerts
on member AB. Also, what are the horizontal and vertical
components of reaction at pin A? Neglect the weight of the
frame and roller.
60 lb-ft
A
D
0.5 ft
