السؤال
Transcribed Image Text:

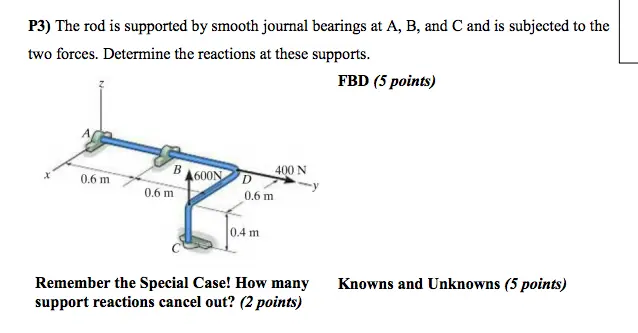

P3) The rod is supported by smooth journal bearings at A, B, and C and is subjected to the
two forces. Determine the reactions at these supports.
B600N
400 N
D
0.6 m
0.6 m
0.6 m
0.4 m
Remember the Special Case! How many
support reactions cancel out? (2 points)
FBD (5 points)
Knowns and Unknowns (5 points)
