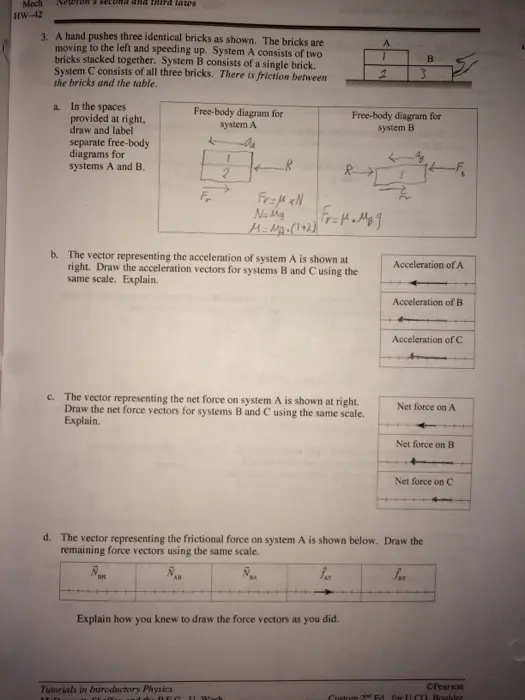

Mech HW-42 Netoton's second and third lates 3. A hand pushes three identical bricks as shown. The bricks are moving to the left and speeding up. System A consists of two bricks stacked together. System B consists of a single brick. System C consists of all three bricks. There is friction between the bricks and the table. a. In the spaces provided at right, draw and label Free-body diagram for system A 1 A B 3 Free-body diagram for system B separate free-body diagrams for systems A and B. t 1 R Fr=HxN Na Mg M: Ma.(+2) Fr=H.M b. The vector representing the acceleration of system A is shown at right. Draw the acceleration vectors for systems B and C using the same scale. Explain. c. The vector representing the net force on system A is shown at right. Draw the net force vectors for systems B and C using the same scale. Explain. Acceleration of A Acceleration of B Acceleration of C Net force on A Net force on B Net force on C d. The vector representing the frictional force on system A is shown below. Draw the remaining force vectors using the same scale. JAT Explain how you knew to draw the force vectors as you did. Tutorials in Introductory Physics CPearson 360 Chaffu and the EG HLWoch Custom 2 Fd for UCO Boulder
