السؤال
Transcribed Image Text:

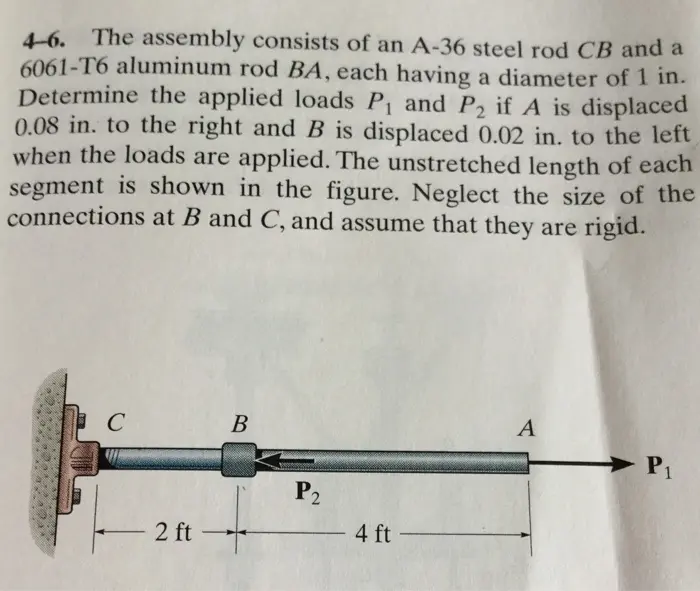

4-6. The assembly consists of an A-36 steel rod CB and a
6061-T6 aluminum rod BA, each having a diameter of 1 in.
Determine the applied loads P₁ and P2 if A is displaced
0.08 in. to the right and B is displaced 0.02 in. to the left
when the loads are applied. The unstretched length of each
segment is shown in the figure. Neglect the size of the
connections at B and C, and assume that they are rigid.
C
B
2 ft
P2
4 ft
A
Pi
