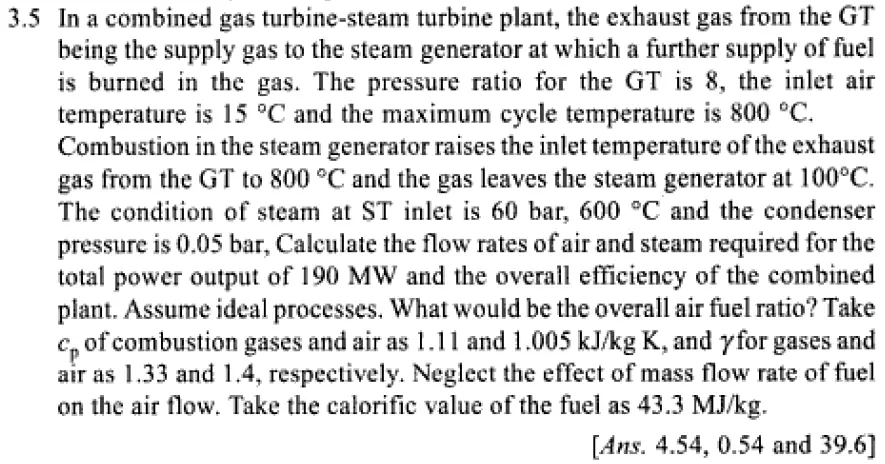

3.5 In a combined gas turbine-steam turbine plant, the exhaust gas from the GT being the supply gas to the steam generator at which a further supply of fuel is burned in the gas. The pressure ratio for the GT is 8, the inlet air temperature is 15 °C and the maximum cycle temperature is 800 °C. Combustion in the steam generator raises the inlet temperature of the exhaust gas from the GT to 800 °C and the gas leaves the steam generator at 100°C. The condition of steam at ST inlet is 60 bar, 600 °C and the condenser pressure is 0.05 bar, Calculate the flow rates of air and steam required for the total power output of 190 MW and the overall efficiency of the combined plant. Assume ideal processes. What would be the overall air fuel ratio? Take c of combustion gases and air as 1.11 and 1.005 kJ/kg K, and yfor gases and air as 1.33 and 1.4, respectively. Neglect the effect of mass flow rate of fuel on the air flow. Take the calorific value of the fuel as 43.3 MJ/kg. [Ans. 4.54, 0.54 and 39.6]
