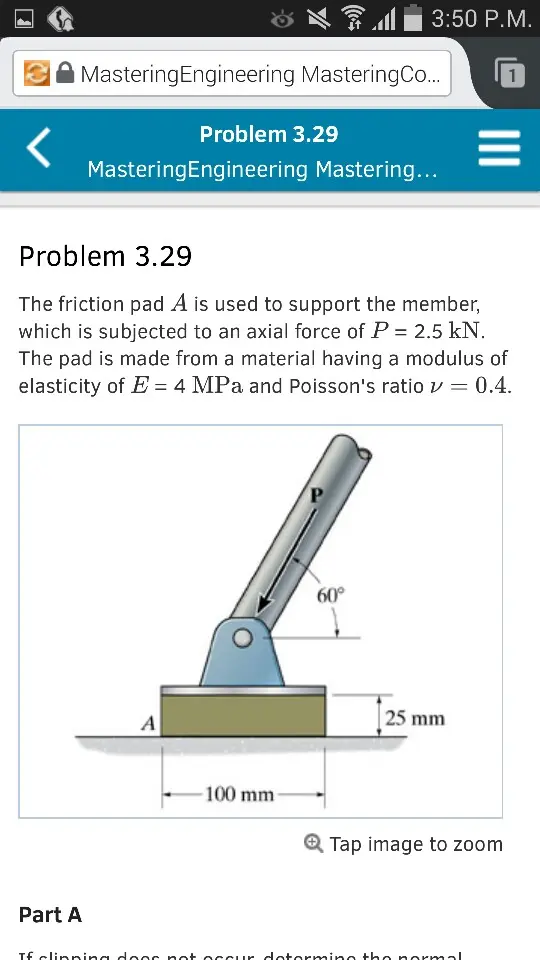

MasteringEngineering Mastering Co... Problem 3.29 MasteringEngineering Mastering... 3:50 P.M. ||| = Problem 3.29 The friction pad A is used to support the member, which is subjected to an axial force of P = 2.5 kN. The pad is made from a material having a modulus of elasticity of E = 4 MPa and Poisson's ratio = 0.4. Part A A 60° 25 mm 100 mm- Tap image to zoom Saving screenshot... Problem 3.29 MasteringEngineering Mastering... ||| = It slipping does not occur, determine the normal strain in the pad. The width is 50 mm. Assume that the material is linearly elastic. Also, neglect the effect of the moment acting on the pad. Express your answer to three significant figures. = 0.108 mm/mm Submit Give Up Correct Part B Determine the shear strain in the pad. Express your answer to three significant figures. Y = 0.043 Submit rad Give Up Copied to clipboard. Incorrect; my Agam, 4 attempts remaining
