السؤال
Transcribed Image Text:

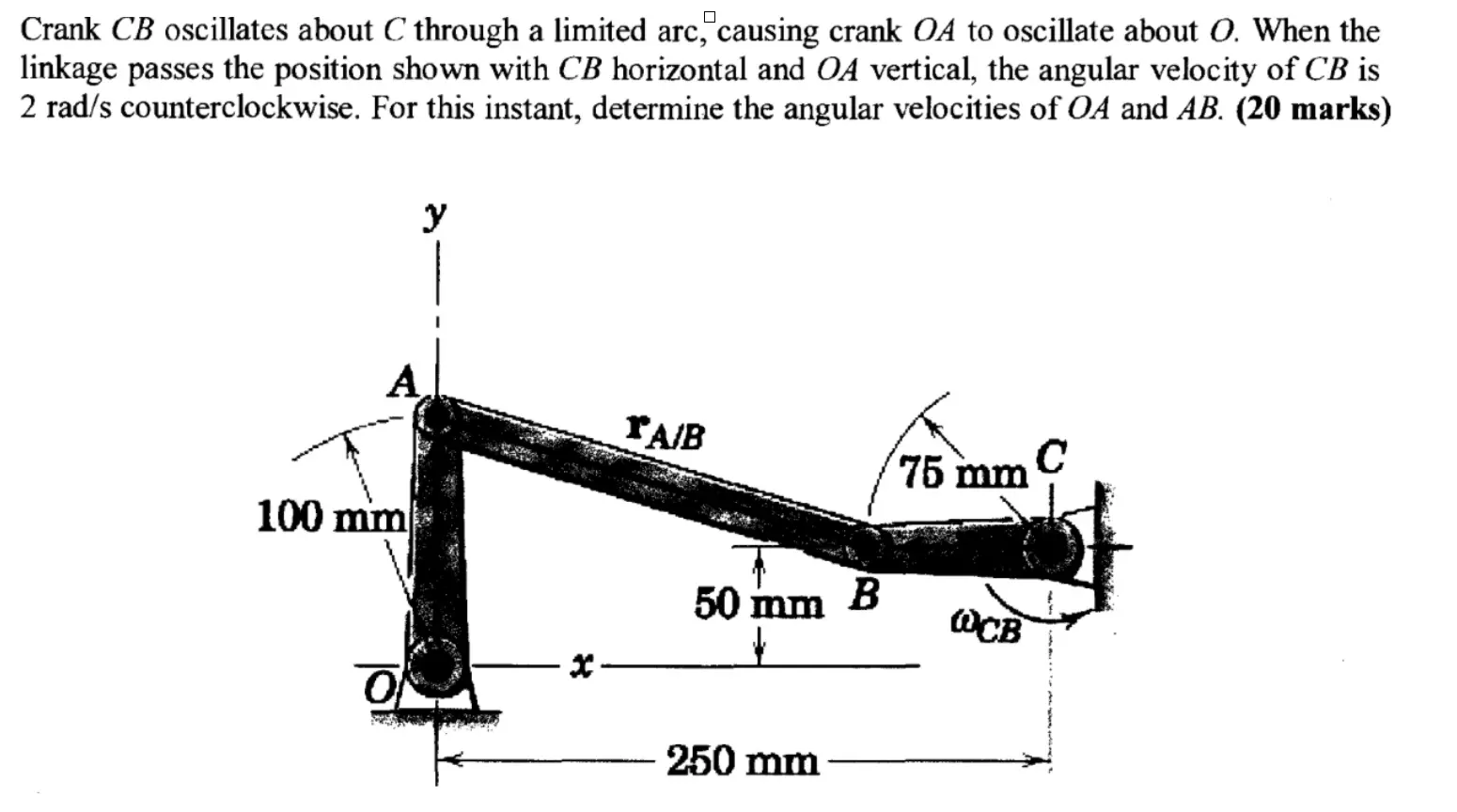

Crank CB oscillates about C through a limited arc, causing crank OA to oscillate about O. When the
linkage passes the position shown with CB horizontal and OA vertical, the angular velocity of CB is
2 rad/s counterclockwise. For this instant, determine the angular velocities of OA and AB. (20 marks)
y
A
100 mm
ΓΑΒ
C
75 mm
50 mm
B
WCB
x
Ο
250 mm
