السؤال

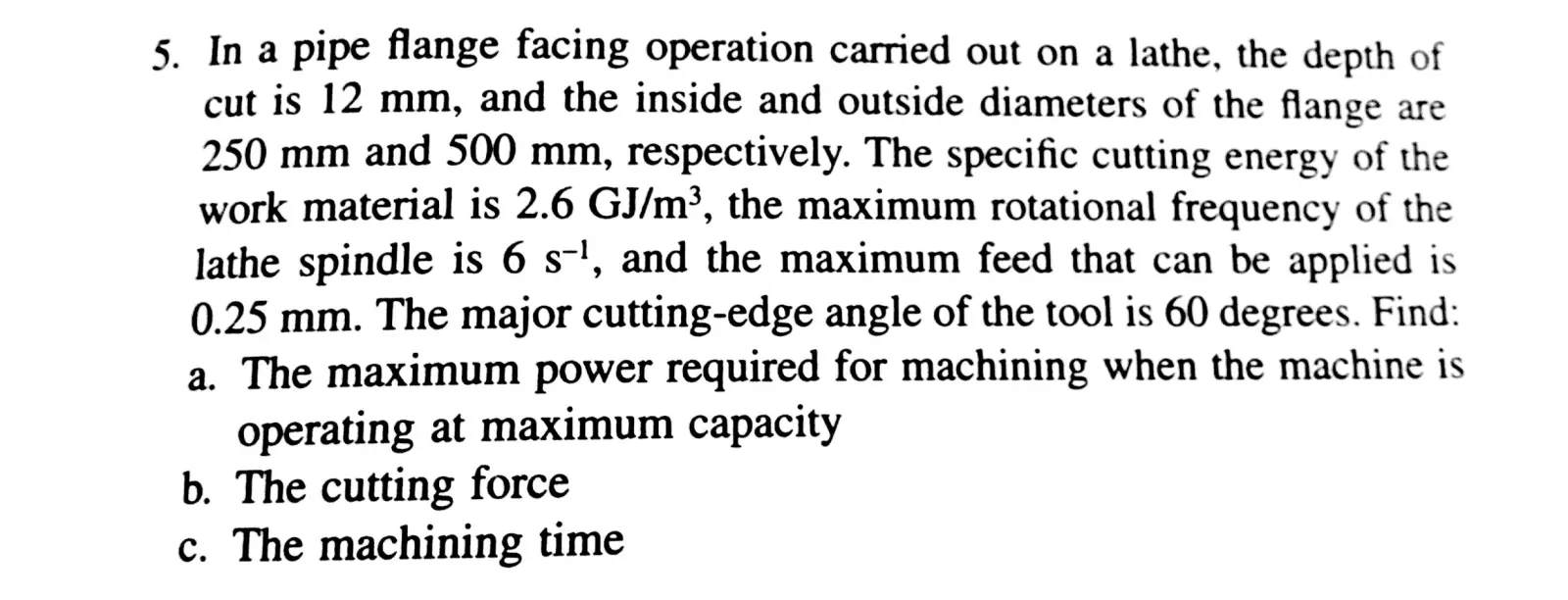

Transcribed Image Text:
5. In a pipe flange facing operation carried out on a lathe, the depth of
cut is 12 mm, and the inside and outside diameters of the flange are
250 mm and 500 mm, respectively. The specific cutting energy of the
work material is 2.6 GJ/m³, the maximum rotational frequency of the
lathe spindle is 6 s-¹, and the maximum feed that can be applied is
0.25 mm. The major cutting-edge angle of the tool is 60 degrees. Find:
a. The maximum power required for machining when the machine is
operating at maximum capacity
b. The cutting force
c. The machining time
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
