السؤال

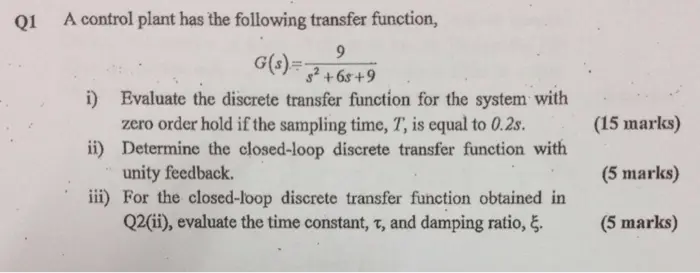

Transcribed Image Text:
Q1
A control plant has the following transfer function,
9
G(s)=3+68+9
i) Evaluate the discrete transfer function for the system with
zero order hold if the sampling time, T, is equal to 0.2s.
ii) Determine the closed-loop discrete transfer function with
unity feedback.
iii) For the closed-loop discrete transfer function obtained in
Q2(ii), evaluate the time constant, t, and damping ratio, 5.
(15 marks)
(5 marks)
(5 marks)
