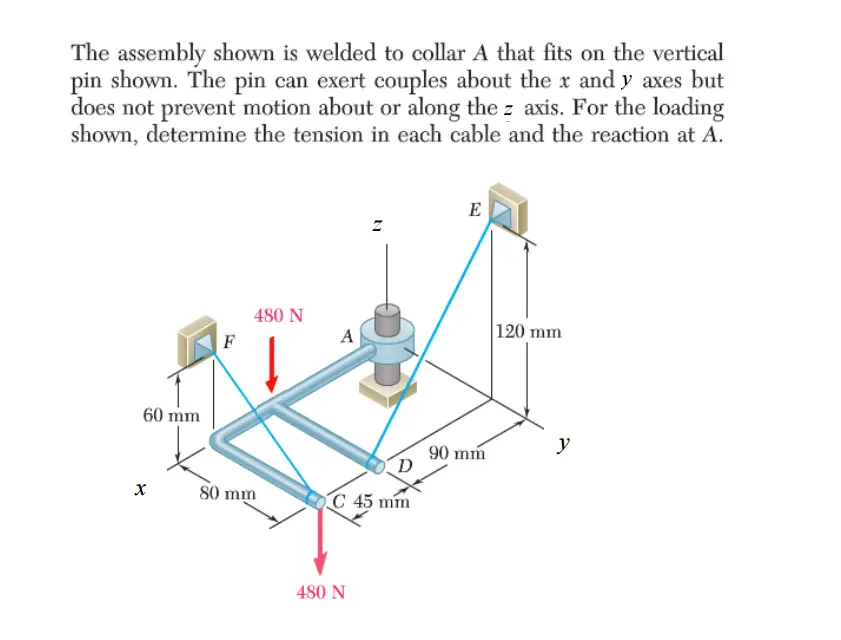

The assembly shown is welded to collar A that fits on the vertical pin shown. The pin can exert couples about the x and y axes but does not prevent motion about or along the z axis. For the loading shown, determine the tension in each cable and the reaction at A. 60 mm F 480 N E Z A 120 mm y 90 mm D x 80 mm C 45 mm 480 N
