السؤال

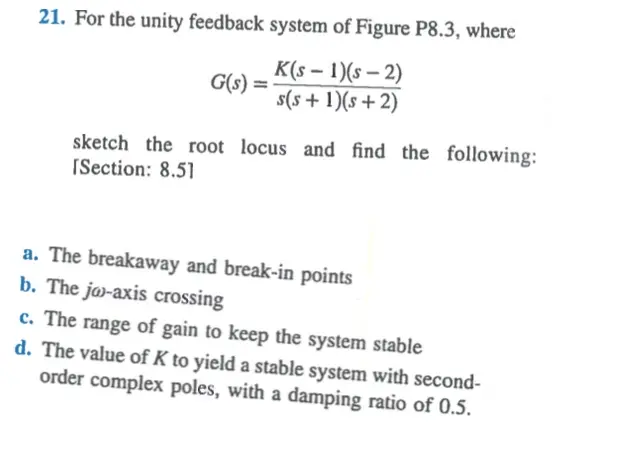

Transcribed Image Text:
21. For the unity feedback system of Figure P8.3, where
K(s-1)(s-2)
G(s)
==
s(s+ 1)(s+2)
sketch the root locus and find the following:
[Section: 8.51
a. The breakaway and break-in points
b. The jo-axis crossing
c. The range of gain to keep the system stable
d. The value of K to yield a stable system with second-
order complex poles, with a damping ratio of 0.5.
