السؤال
Transcribed Image Text:

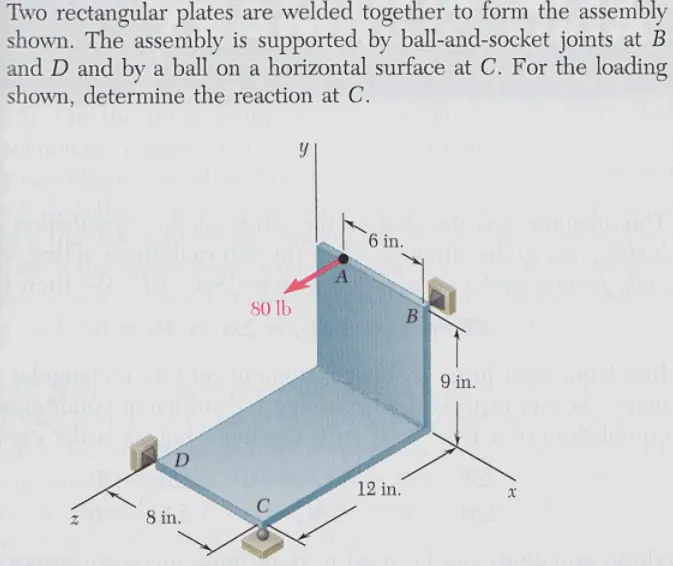

Two rectangular plates are welded together to form the assembly
shown. The assembly is supported by ball-and-socket joints at B
and D and by a ball on a horizontal surface at C. For the loading
shown, determine the reaction at C.
y
8 in.
D
80 lb
A
C
6 in.
12 in.
B
9 in.
