السؤال
Transcribed Image Text:

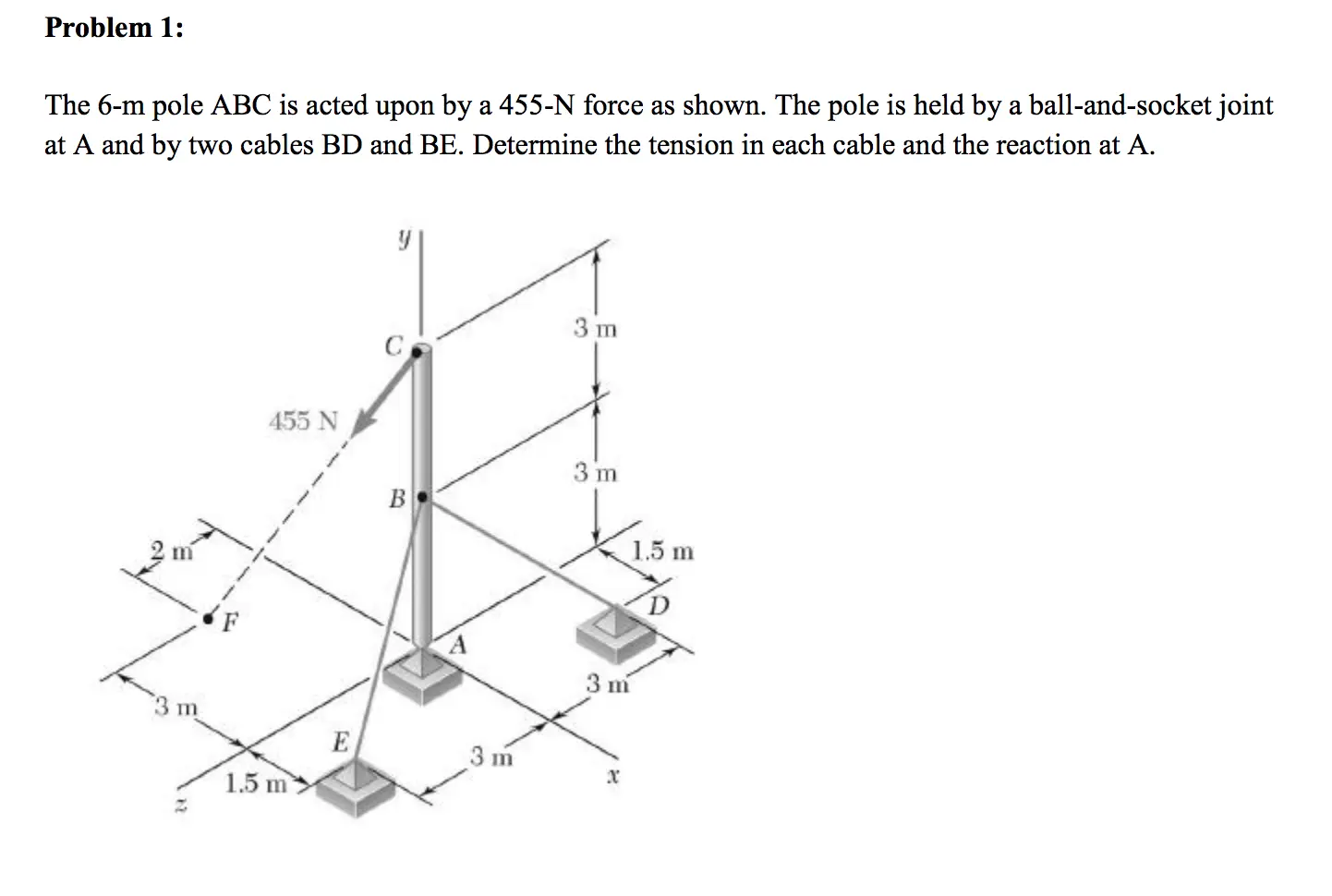

Problem 1:
The 6-m pole ABC is acted upon by a 455-N force as shown. The pole is held by a ball-and-socket joint
at A and by two cables BD and BE. Determine the tension in each cable and the reaction at A.
m
455 N
3 m
1.5 m
3 m
C
B
E
3 m
3 m
3 m
1.5 m
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
