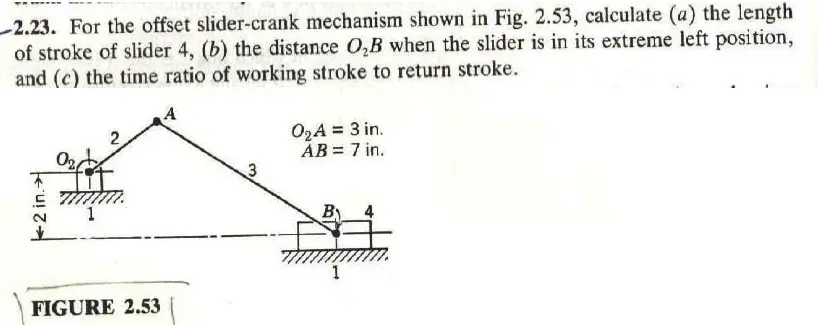

-2.23. For the offset slider-crank mechanism shown in Fig. 2.53, calculate (a) the length
of stroke of slider 4, (b) the distance O₂B when the slider is in its extreme left position,
and (c) the time ratio of working stroke to return stroke.
3
O₂A = 3 in.
AB = 7 in.
FIGURE 2.53
