السؤال
Transcribed Image Text:

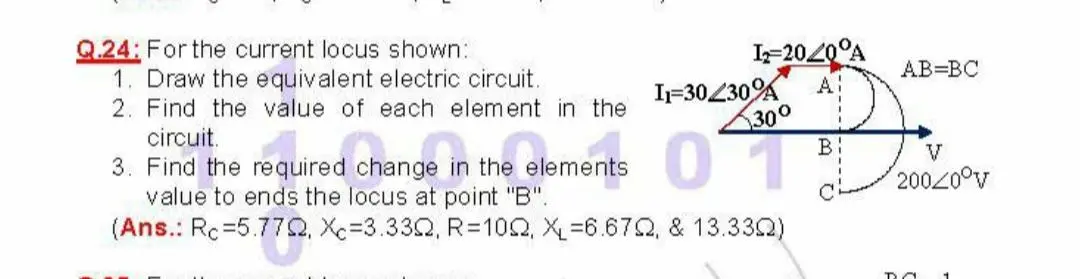

Q.24: For the current locus shown:
1. Draw the equivalent electric circuit.
2. Find the value of each element in the
circuit.
d change in the elem
3. Find the required change in the elements
value to ends the locus at point "B".
I=2020A
A
I₁=30 30%
30°
0
(Ans.: Rc 5.770, Xc=3.3302, R=100, X=6.670, & 13.3302)
AB=BC
V
200/0°V
DA
1
