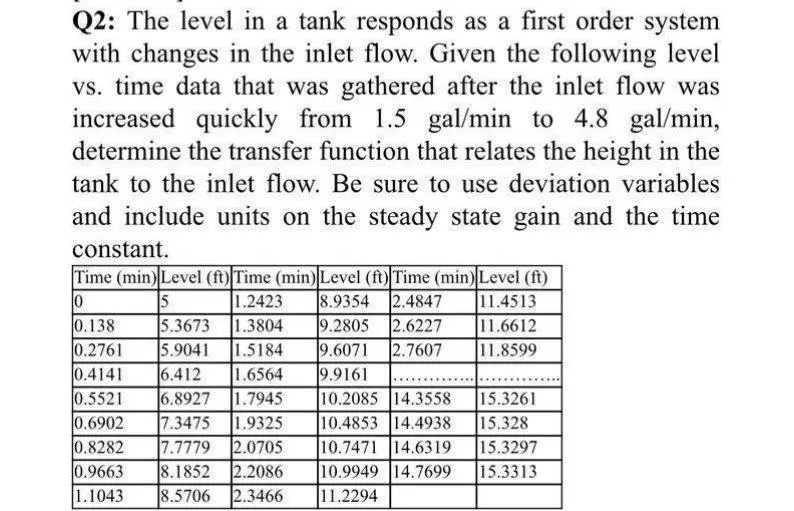

Q2: The level in a tank responds as a first order system
with changes in the inlet flow. Given the following level
vs. time data that was gathered after the inlet flow was
increased quickly from 1.5 gal/min to 4.8 gal/min,
determine the transfer function that relates the height in the
tank to the inlet flow. Be sure to use deviation variables
and include units on the steady state gain and the time
constant.
Time (min) Level (ft) Time (min) Level (ft) Time (min) Level (ft)
0
5
1.2423 8.9354 2.4847
11.4513
0.138 5.3673 1.3804
0.2761 5.9041 1.5184
0.4141 6.412 1.6564
0.5521 6.8927 1.7945
0.6902 7.3475 1.9325
0.8282 7.7779 2.0705
0.9663 8.1852 2.2086
1.1043 8.5706 2.3466
9.2805 2.6227
11.6612
9.6071 2.7607
11.8599
9.9161
10.2085 14.3558
15.3261
10.4853 14.4938
15.328
10.7471 14.6319
15.3297
10.9949 14.7699
15.3313
11.2294
