السؤال
Transcribed Image Text:

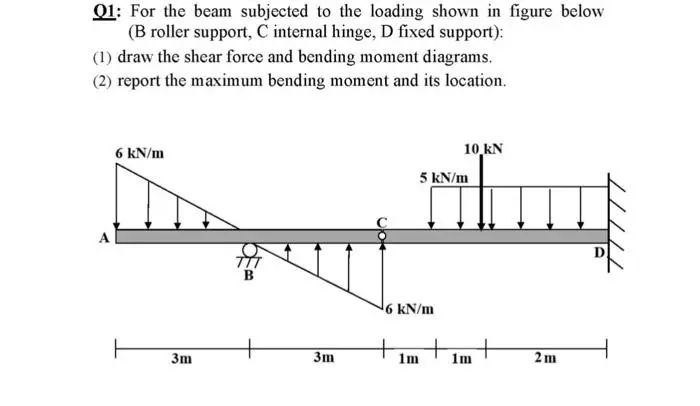

Q1: For the beam subjected to the loading shown in figure below
(B roller support, C internal hinge, D fixed support):
(1) draw the shear force and bending moment diagrams.
(2) report the maximum bending moment and its location.
6 kN/m
3m
3m
10 kN
5 kN/m
+
6 kN/m
1m
1m
+
2m
