السؤال
Transcribed Image Text:

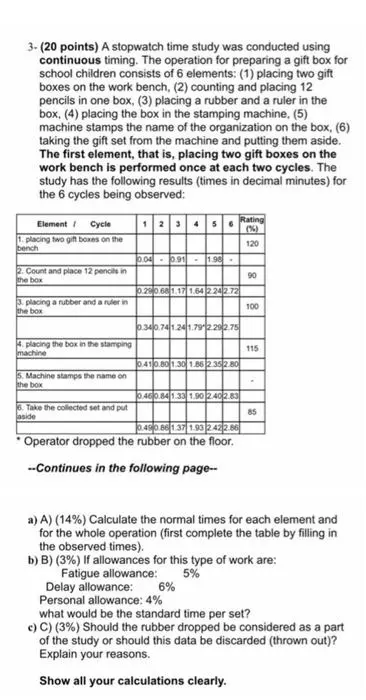

3-(20 points) A stopwatch time study was conducted using
continuous timing. The operation for preparing a gift box for
school children consists of 6 elements: (1) placing two gift
boxes on the work bench, (2) counting and placing 12
pencils in one box, (3) placing a rubber and a ruler in the
box, (4) placing the box in the stamping machine, (5)
machine stamps the name of the organization on the box, (6)
taking the gift set from the machine and putting them aside.
The first element, that is, placing two gift boxes on the
work bench is performed once at each two cycles. The
study has the following results (times in decimal minutes) for
the 6 cycles being observed:
Element / Cycle
placing two gift boxes on the
bench
2. Count and place 12 pencils in
the box
Rating
(96)
120
0.04 0.911.98-
90
0.290.681.17 1.64 2.242.72
3. placing a rubber and a ruler in
100
the box
0.340.741.241.792 292.75
4. placing the box in the stamping
machine
115
0.410.80 1.30 1.862.352.80
5. Machine stamps the name on
the box
0.460.84 1.33 1.90 2.402.83
6. Take the collected set and put
aside
85
1.37 1.93 2422.86
Operator dropped the rubber on the floor.
--Continues in the following page--
a) A) (14%) Calculate the normal times for each element and
for the whole operation (first complete the table by filling in
the observed times).
b) B) (3%) If allowances for this type of work are:
Fatigue allowance:
Delay allowance:
Personal allowance: 4%
5%
6%
what would be the standard time per set?
c) C) (3%) Should the rubber dropped be considered as a part
of the study or should this data be discarded (thrown out)?
Explain your reasons.
Show all your calculations clearly.
