السؤال

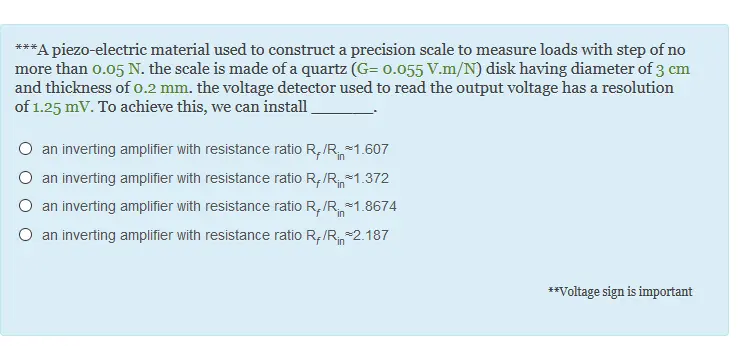

Transcribed Image Text:
**A piezo-electric material used to construct a precision scale to measure loads with step of no
more than 0.05 N. the scale is made of a quartz (G= 0.055 V.m/N) disk having diameter of 3 cm
and thickness of 0.2 mm. the voltage detector used to read the output voltage has a resolution
of 1.25 mV. To achieve this, we can install
an inverting amplifier with resistance ratio R,/R = 1.607
in
an inverting amplifier with resistance ratio R,/R. *1.372
an inverting amplifier with resistance ratio R,/R. *1.8674
O an inverting amplifier with resistance ratio R/R = 2.187
in
in
**Voltage sign is important
