السؤال

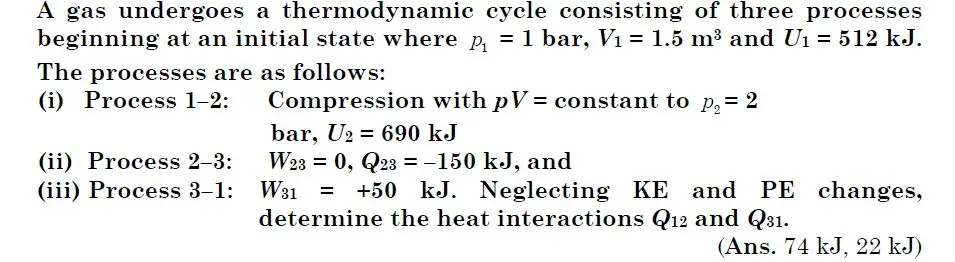

Transcribed Image Text:
A gas undergoes a thermodynamic cycle consisting of three processes
beginning at an initial state where p₁ = 1 bar, V₁ = 1.5 m³ and U₁ = 512 kJ.
The processes are as follows:
(i) Process 1-2:
(ii) Process 2-3:
(iii) Process 3-1:
Compression with pV = constant to p₂ = 2
bar, U2690 kJ
W23 = 0, Q23 = -150 kJ, and
W31 = +50 kJ. Neglecting KE and PE changes,
determine the heat interactions Q12 and Q31.
(Ans. 74 kJ, 22 kJ)
