السؤال
Transcribed Image Text:

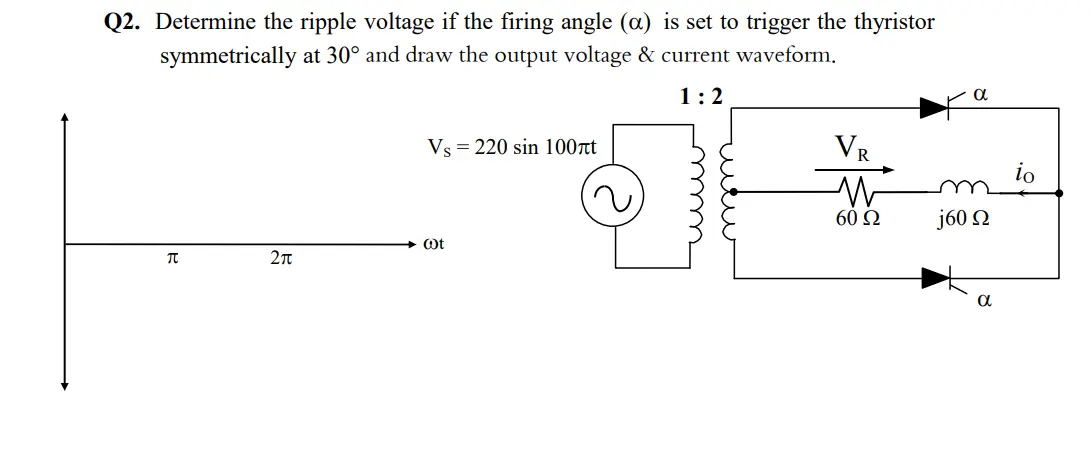

Q2. Determine the ripple voltage if the firing angle (a) is set to trigger the thyristor
symmetrically at 30° and draw the output voltage & current waveform.
Vs 220 sin 100πt
@t
元
2π
1:2
α
VR
W
io
60 Ω
160 Ω
α
