السؤال

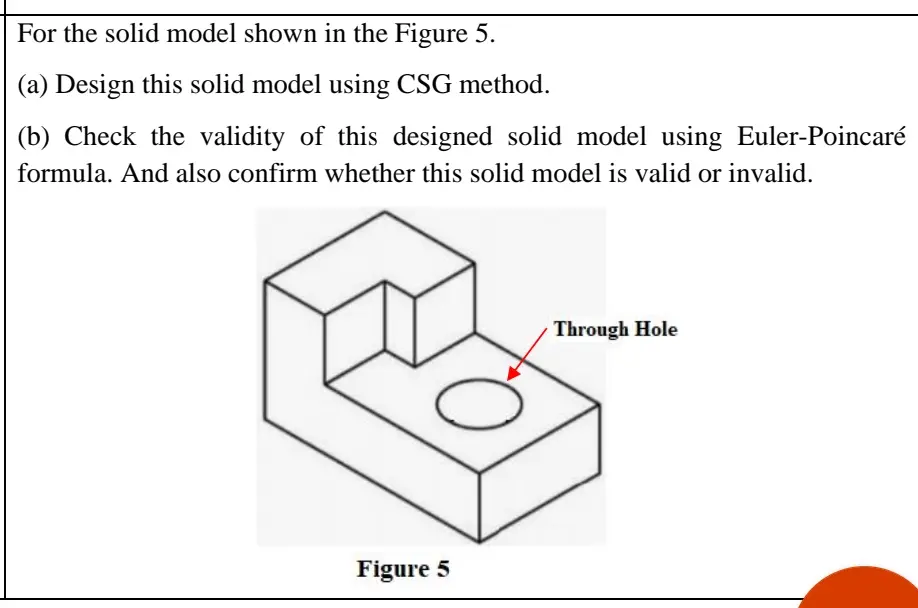

Transcribed Image Text:
For the solid model shown in the Figure 5.
(a) Design this solid model using CSG method.
(b) Check the validity of this designed solid model using Euler-Poincaré
formula. And also confirm whether this solid model is valid or invalid.
Figure 5
Through Hole
