السؤال
Transcribed Image Text:

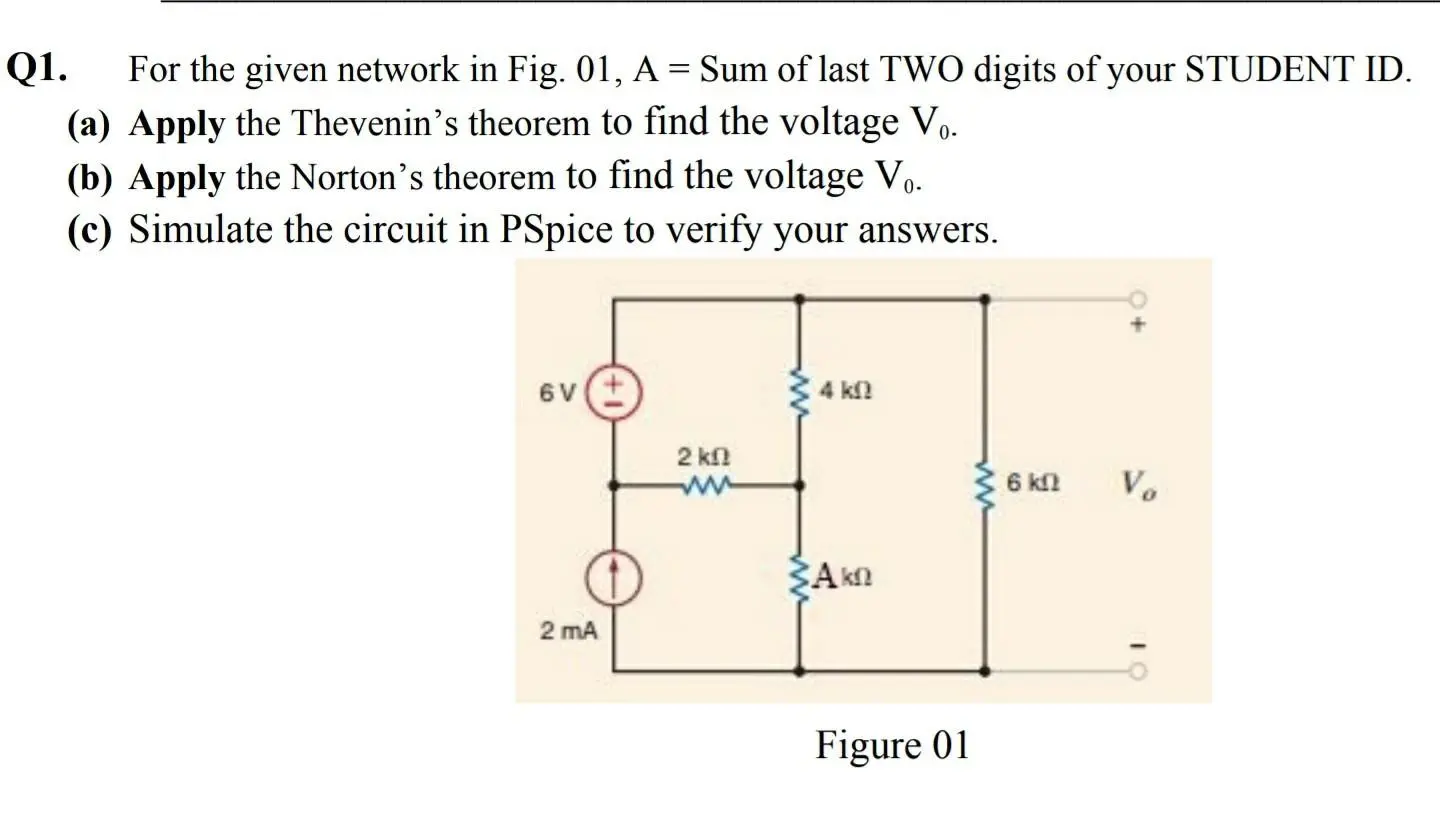

Q1.
=
For the given network in Fig. 01, A Sum of last TWO digits of your STUDENT ID.
(a) Apply the Thevenin's theorem to find the voltage Vo.
(b) Apply the Norton's theorem to find the voltage Vo.
(c) Simulate the circuit in PSpice to verify your answers.
6V +
2 k
4 ΚΩ
2 mA
ΣΑΚΩ
Figure 01
6 ΚΩ
Vo
